Complex SQL Joins: Unlock Deeper Insights from Your Data
Beyond the most used join types in SQL, there are also a range of advanced join techniques that allow for more intricate data relationships and querying flexibility. These options, such as joining on multiple conditions, self joins, non-equi joins, and cross joins, can unlock deeper insights from your data.
Let’s work through the more advanced join types using practical examples from the freely available Microsoft AdventureWorks database—download this database for free and follow along..
And if you haven’t already, don’t miss the first part of this series: Introduction to SQL Joins: A Beginner’s Guide with Practical Examples.
Join on Multiple Conditions
In many cases, you may need to join tables based on more than one column. This allows for a more specific relationship between tables.
Join on Multiple Conditions Example
Let’s say we want to join the Sales.SalesOrderHeader and Sales.SalesOrderDetail tables to retrieve sales order information, but we want to ensure that we match not only on SalesOrderID but also on the OrderQty for more precise filtering.
This query joins the two tables on SalesOrderID and TerritoryID to ensure that only rows that meet both conditions are included. Additionally, we filter orders with a quantity greater than 5.
Tip: Ensure that all the join conditions are accurate for your specific use case to avoid incorrect results.
Pitfall: Overcomplication of joins with too many conditions can lead to performance issues, so make sure to use indexes to optimize your query.
Self Join
A self join is when a table is joined with itself. This can be useful when you need to compare rows within the same table.
Self Join Example
Let’s retrieve information about employees and their managers from the HumanResources.Employee table. Both the employee and their manager are stored in the same table.

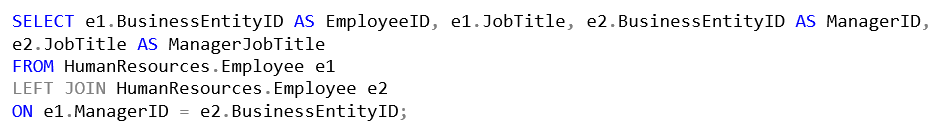

This query self-joins the Employee table to match employees (e1) with their respective managers (e2). It returns both the employee’s and manager’s job titles.
Tip: Use a self join for hierarchical data like organizational charts or parent-child relationships.
Pitfall: Be cautious with large datasets as self joins can become resource intensive. Proper indexing of the join columns helps alleviate performance issues.
Non-Equi Join
A non-equi join is a join where the condition does not involve strict equality ( = ). These types of joins are useful when you’re working with examples such as ranges or complex relationships.
Non-Equi Join Example
Let’s suppose we want to find products and categorize their prices into predefined price ranges. We can use a non-equi join between the Production.Product table and a table of price ranges.
In this query example, the product prices are compared against price ranges (Low, Medium, High). The join condition is based on whether the product’s ListPrice falls within the range of MinPrice and MaxPrice, which makes this a Non-Equi Join.
Tip: Use non-equi joins for complex scenarios where equality conditions are not sufficient (e.g., price brackets, time intervals).
Pitfall: Non-equi joins can be slow if the join involves a large dataset without proper indexing.
Joining Multiple Tables
It’s a common need to join more than two tables in a query to retrieve comprehensive data from a relational database.
Joining Multiple Tables Example
Let’s retrieve customer information, their sales orders, and the products they purchased by joining Person.Person, Sales.SalesOrderHeader, and Sales.SalesOrderDetail.

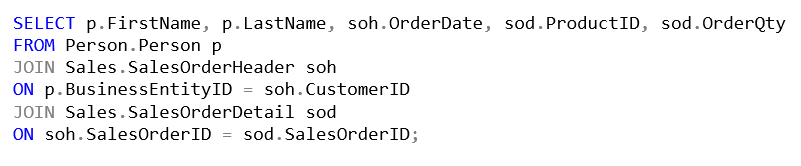

This query example joins three tables:
- Person to retrieve customer information
- SalesOrderHeader for the order details
- SalesOrderDetail for the product information
This gives a detailed view of each customer’s orders and the products they purchased.
Tip: Break down your join conditions logically when working with multiple tables. Always take care that each join matches the correct columns.
Pitfall: Keep performance front of mind. Joining multiple large tables can lead to slow query execution if indexes are not properly configured.
Join with Aggregation
Sometimes, after joining multiple tables, you may need to aggregate data, such as calculating total sales for each customer.
Join with Aggregation Example
Let’s calculate the total order value for each customer by joining the Person.Person and Sales.SalesOrderHeader tables and then aggregating the results.

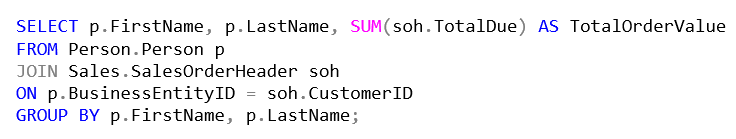

This query example joins customer data with sales orders and uses the SUM( ) function to calculate the total order value for each customer. The GROUP BY clause ensures that the result is grouped by each customer.
Tip: Aggregation after joining can provide valuable insights, such as total sales, order counts, or average values.
Pitfall: Always ensure that only relevant columns are included in the GROUP BY clause to avoid grouping errors.
Cross Join (Cartesian Product of Rows)
A cross join returns the Cartesian product of two tables, simply meaning it combines every row from the first table with every row from the second table. This type of join can be useful when you need to create all possible combinations of data from two sets, so think of generating test data or creating pairing combinations.
Cross Join Example
Let’s say we want to create a list of every possible combination of employees and departments. By taking advantage of using a Cross Join between the HumanResources.Employee and HumanResources.Department tables, we can achieve this.
This query example retrieves every possible combination of employees and departments:
- SELECT: Retrieves the BusinessEntityID, JobTitle from the Employee table, and the Department name from the Department table
- FROM: Defines the Employee table as the primary table
- CROSS JOIN: Combines every row from Employee with every row from Department, producing a Cartesian product
This will output all combinations of employees and departments, regardless of whether an employee works in a specific department.
Tip: Cross joins are useful for generating all combinations between two sets, such as creating test data or matching employees to all possible roles.
Pitfall: Be cautious with large tables. Cross joins can create massive datasets because they return every possible combination of rows. For example, if one table has 1,000 rows and the other has 500 rows, the result will contain 500,000 rows.
Understanding Complex SQL Joins
These less commonly used, complex examples of SQL joins illustrate how you can handle more advanced querying scenarios. Whether you are dealing with multiple conditions, self joins, non-equi joins, or aggregated data, understanding these examples will enable you to unlock even more insights from your relational data.
